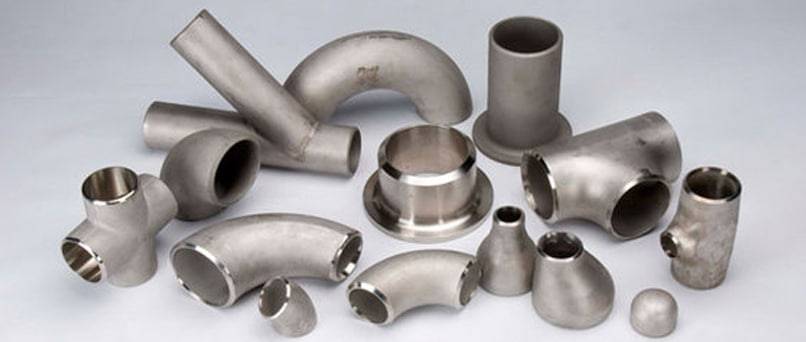

Silver Tubes is one of the well-known trader & supplier of Incoloy 800/ 800H/ 800HT Pipe Fittings, which will not become embrittled even after long periods of usage in the 1200 Degree F -1600 Degree F range where many stainless steels become brittle. Incoloy 800 Pipe Fittings was the first of these alloys and it was slightly modified into Incoloy 800H Pipe Fittings. Meanwhile, Incoloy 800HT Pipe Fittings has further modifications to the combined titanium and aluminium levels to ensure optimum high temperature properties.The chemical balance permits Alloy 800 Pipe Fittings to displayoutstanding resistance to carburization, nitriding and oxidation atmospheres. Excellent cold forming characteristics typically associated with the nickel-chromium alloys are exhibited with Alloy 800H Pipe Fittings. When cold formed extensively, the grain size in Alloy 800HT Pipe Fittings produces a visibly undulated surface called "orange peel".
Incoloy 800 Butt Weld Fittings offers higher elevated temperature characteristics and has better creeping and stress rupture properties at the temperature limits up to 1100 DegreeF – 1800 Degree F or 593 Degree C to 982 Degree C. Incoloy 800H Butt Weld Fittings are commonly used in applications that include high temperature corrosive media like in hydrocarbon cracking, ethylene Pyrolysis, furnaces for vinyl chloride, valves, fittings and other related fixtures. Incoloy 800HT Butt Weld Fittings also resists sulphuric, phosphoric, acetic,formic acids and other non-oxidizing media.In addition to having exceptional corrosion resistance, Incoloy 800 Butt Weld Pipe Fittings can also be readily fabricated.
These are available in ERW, EFW, seamless, fabricated, and welded. These specs provide high strength and hardness to all types of fittings. These fittings are constructed with various types of chemical composition, which helps to resist all types of corrosion and rust. These are carbon, manganese, silicon, phosphorus, sulfur, chromium, copper, nickel and iron as well. Incoloy 800/800HT/825 Forged Fittings can be used in several areas of the industry, as well as the general areas like condensers, the pulp industry, the food processing industry, power plants, fabrication industries, structural pipe mechanics, the pharmaceutical industry, seawater equipment, petrochemical industries, and gas pipelines, offshore oil drilling companies, paper production industries, heat exchangers, pharmaceutical equipment, and power generation industries as well.
We manufacture Incoloy 800 / 800H / 800HT Forged Fittings through efficient fabrication due to which the end product is strong, durable, and corrosion-free with robust construction. Our team ensures precision through the use of high-quality raw materials and strict adherence to all norms and international standards. These types of fittings they have exceptional chemical and mechanical properties, makes them best for high-temperature applications. Our packaging team assures that we use top-quality materials to protect the items from damage during transit. Furthermore, we offer convenient shipping options to client places and are able to supply supreme quality products as per standard, dimension, or specification.
| Specifications | ASTM B366 / ASME SB366 |
| Dimensions | ANSI B16.9, B16.25, B16.28, MSS-SP-43, MSS-SP-48, MSS-SP-59 |
| Size | Seamless Pipe Fittings: 1/2" - 10", Welded Pipe Fittings: 1/2" - 48" |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
| Schedule | Sch 5 TO Sch XXS. |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Alloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Alloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Alloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800/800H/800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| Nominal Pipe Size |
Outside Diameter |
Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) |
Center to End (inch) |
Center to End (inch) |
Lap Diameter (inch) |
Long Length (inch) |
Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| (oF) | (oC) | 150 |
| -20 to 150 | -29 to 66 | 300 |
| 200 | 93 | 265 |
| 250 | 121 | 225 |
| 300 | 149 | 185 |
| 350 | 177 | 150 |
| 400 | 204 | - |
| 450 | 232 | - |
| 500 | 260 | - |
| 550 | 288 | - |
| High Nickel Alloys Elbow | USD $8.11 - $20.21 / Piece (FOB Price) on request |
| High Nickel Alloys Equal Tee | USD $8.11 - $20.21 / Piece (FOB Price) on request |
| High Nickel Alloys Reducing Tee | USD $8.11 - $20.21 / Piece (FOB Price) on request |
| High Nickel Alloys Cross | USD $8.11 - $20.21 / Piece (FOB Price) on request |
| High Nickel Alloys Cap | USD $8.11 - $20.21 / Piece (FOB Price) on request |
MSS-SP-48 Incoloy 800 Buttweld Reducer, Incoloy 800H Piggable Bend, Incoloy 800HT Collar, Alloy 800 Lap Joint Stub End Manufacturer, JIS NCF 800/800H/800HT Incoloy Barrel Nipple, Alloy 800H End Cap, Incoloy Alloy 800HT Weldable Elbow exporter in India, Incoloy 800 Butt-Welding Fittings dimensions, 800H Incoloy Alloy 90 Degree LR Elbow, Incoloy 800HT Long Stub Ends, DIN 1.4876 Short Stub End, Incoloy 800 Equal Cross, ANSI B16.25 Incoloy 800H Pipe Cap, UNS N08800 Incoloy 180° Long Radius Elbow, UNS N08810 Incoloy 45 deg SR Elbow, ANSI B16.28 Alloy UNS N08811 Short Radius Elbow Supplier in India, Incoloy 800/800H/800HT Welded Butt weld pipe fittings

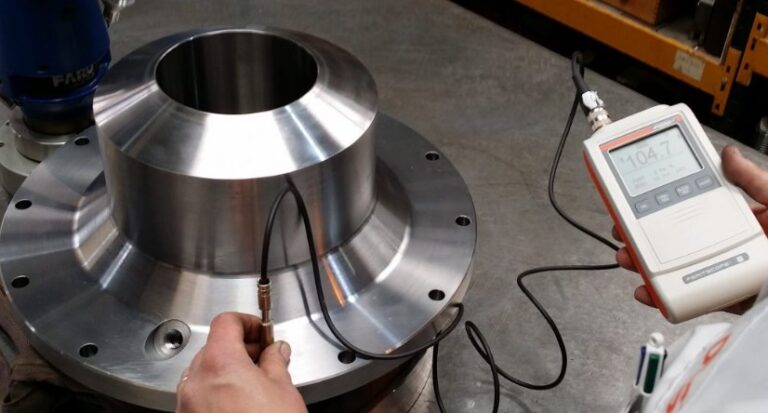

We are known for accurate and precise dimensions. All our products are completely tested Prior to shipping. We conduct both destructive and non-destructive tests on all our products.

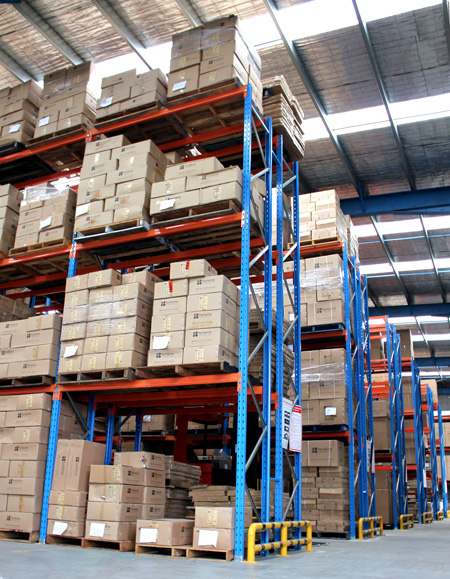

We follow the safest and the most effective method of packaging for all sorts of delivery. We package our goods in all sorts of manners, such as:
