Pipe Fittings Manufacturer & Supplier

Silver Tubes is a leading pipe fittings manufacturer in India, offering a comprehensive range of high-quality fittings for various industries. Pipe fittings are essential components used to connect, control, and direct the flow of fluids in piping systems. We offer a broad range of fittings, which include elbows, tees, reducers, couplings, and flanges, manufactured from materials like stainless steel, carbon steel and alloy steel. Our fittings are designed according to industry standards like ASTM, ASME, and ANSI so that they have high performance and durability. As one of the major leading pipe fittings suppliers in Mumbai, we supply fittings to different sectors like oil & gas, petrochemicals, power plants and water treatment, with diverse sizes and dimensions to cater to specific requirements.

What Are Pipe Fittings & Their Functions?

Pipe fittings are mechanical devices applied in piping systems to join various pipe sections to permit smooth fluid or gas movement. These fittings are significant in modifying direction, managing pressure, sealing leaks and joining pipes of different sizes. Pipe fittings' main function is to provide an efficient, leak-proof connection that improves pipelines' safety, and performance. Depending on their application, fittings can be categorized as elbows (for change of direction), reducers (for change of diameter), tees (for branching connections), and caps (for closing pipe ends). Understanding pipe fittings and how they work is critical to determining the proper pieces for particular purposes, allowing the best performance possible in construction, marine and chemical processing applications.

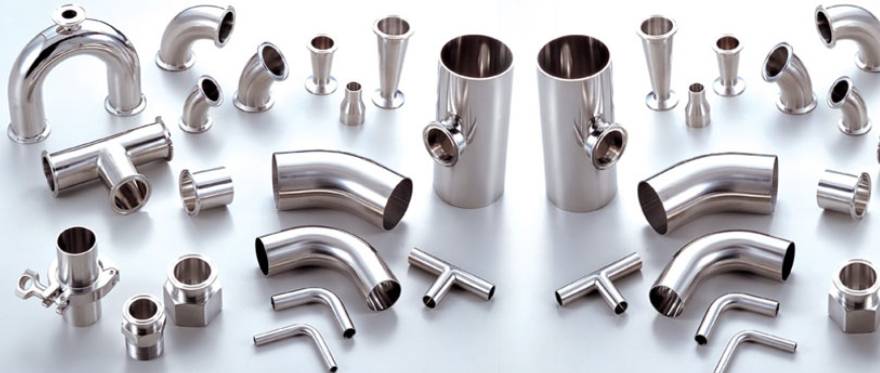

Pipe Fittings

Types of Pipe Fittings We Offer

We offer various types of pipe fittings for different industrial uses. Our superior quality buttweld fittings are made to provide a leakage-free, safe joint for the piping system. Below is a brief description of the basic pipe fittings we supply:

  • Elbow Pipe Fittings: Elbow pipe fittings are used to change the direction of flow in a piping system. They are available in various angles, the most common being the 90-degree elbow pipe fitting and the 45-degree elbow. They play an important role in plumbing and industrial systems to provide free fluid flow and minimize pressure drops.
  • Tee Pipe Fittings: Tee fittings enable splitting off a pipeline into two ways. Tee fittings are employed where fluid or gas must be combined or distributed. Equal and reducing types of tee fittings exist. Tee fittings are important in keeping piping systems efficient.
  • Reducer Pipe Fitting: A reducer pipe fitting connects pipes of varying diameters to provide a smooth transition, and preserve flow rates properly. Concentric and eccentric reducers are the two types; one is for slow transition (concentric) and the other is for blocking air pockets in horizontal flows (eccentric).
  • Cross Pipe Fittings: Cross pipe fittings have four holes and are used whenever a pipeline needs to be divided into multiple branches. Cross pipe fittings find their use in fire sprinkler systems, water distribution systems and industrial processes with multiple flows in different directions.
  • Cap Pipe Fittings: Pipe caps are used to close the end of a pipe, excluding contaminants and preserving system integrity. They are needed for pipeline maintenance and temporary closure. Being a reliable pipe fittings manufacturer in India, we make sure that our fittings are of international quality standards, offering long-lasting and high-performance solutions.

Pipe Fittings Materials & Grades

Pipe fittings are important for piping various industries to connect, control, and redirect the flow of fluids. The pipe fittings are made from various materials depending on application specifications such as stainless steel, carbon steel, alloy steel, and brass. Each material is available in several grades conforming to international standards in order to be durable, resistant to corrosion, and mechanically strong.

Stainless Steel Pipe Fittings

Our stainless steel pipe fittings are widely used due to their excellent corrosion resistance, high-temperature strength, and durability. These fittings are commonly found in industries such as petrochemicals, pharmaceuticals, food processing, and water treatment.

Grades & Standards

  • SS 304 / 304L: Known for general-purpose corrosion resistance, excellent weldability, and moderate strength. Standard: ASTM A403, ASME SA403.
  • SS 316 / 316L: Increased corrosion resistance owing to molybdenum content, suitable for marine and chemical environments. Standard: ASTM A403, ASME SA403.
  • SS 321 / 347: Stabilized stainless steel with intergranular corrosion resistance. Standard: ASTM A403, ASME SA403.

Carbon Steel Pipe Fittings

The carbon steel pipe fittings are preferred for high-strength applications in industries like oil & gas, power plants, and structural applications. These fittings provide toughness and resistance to mechanical stress.

Grades & Standards

  • ASTM A234 WPB: Commonly used in high-temperature and pressure systems, offering good strength and weldability. Standard: ASTM A234, ASME SA234.
  • ASTM A105: Used in forged pipe fittings, flanges, and valves, ensuring durability in pressure piping systems. Standard: ASTM A105, ASME SA105.
  • ASTM A350 LF2: Low-temperature carbon steel fitting with impact toughness, ideal for cryogenic applications. Standard: ASTM A350, ASME SA350.

Alloy Steel Pipe Fittings

Alloy steel pipe fittings are engineered to handle extreme temperatures, pressures, and corrosive environments. They are commonly used in refineries, power generation, and chemical processing industries.

Grades & Standards

  • ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91: High-temperature fittings with varying chromium and molybdenum content for enhanced strength and oxidation resistance. Standard: ASTM A234, ASME SA234
  • ASTM A182 F5 / F9 / F11 / F22 / F91: Used in forged alloy steel fittings for extreme pressure and temperature applications. Standard: ASTM A182, ASME SA182.

Brass Pipe Fittings

Brass pipe fittings are highly resistant to corrosion and offer excellent machinability, making them ideal for plumbing, water distribution, gas systems, and marine applications.

Grades & Standards

  • C36000 (Free-Cutting Brass): High machinability, used in threaded fittings. Standard: ASTM B16.
  • C27200 (Yellow Brass): Good corrosion resistance and ductility. Standard: ASTM B135.
  • C46400 (Naval Brass): High resistance to seawater corrosion, suitable for marine environments. Standard: ASTM B21.

Conclusion

The choice of pipe fittings material is based on the pressure, temperature, and operating conditions of the application. Each of the stainless steel pipe fittings, carbon steel pipe fittings, alloy steel pipe fittings, and brass pipe fittings has specific applications in various industries. Grades and standards for pipe fittings guarantee dependability, long lifespan, and adherence to industry standards.


Applications & Industries Served

Our high-quality pipe fittings are engineered to meet the demands of various industries, ensuring efficiency, durability, and safety across diverse applications. Whether for high-pressure systems in oil refineries or everyday plumbing solutions, our fittings are designed for seamless integration and long-lasting performance. Here are some of the industries:

Oil & Gas Industry

Our oil and gas pipe fittings are specially designed to withstand high pressure, high temperature and corrosion.They have wide applications in refineries, pipeline transportation, drilling operations, and offshore rigs for safe transportation of oil, gas and chemicals.

Plumbing & Water Supply

We provide pipe fittings in plumbing systems for residential, commercial, and industrial systems. These fittings provide leak-proof connections in water supply lines, drainage systems, and heating applications.

Water Pumps & Irrigation Systems

The pipe fittings for water pump applications are ideal for agriculture, municipal water systems, and wastewater treatment. They assist in effectively directing the flow of water from pumps into distribution systems and maintaining minimal loss of pressure.

Construction & Infrastructure

Pipe fittings in industrial applications include usage in HVAC systems, fire protection systems, bridges, tunnels, and structural frameworks. These fittings provide strong and secure connections in complex piping layouts.

Chemical & Petrochemical Industry

For handling corrosive fluids and gases, we manufacture pipe fittings with high chemical resistance and durability, making them perfect for chemical processing plants, pharmaceutical industries, and fertilizer production.

We ensure that our pipe fittings meet international standards and cater to a wide range of industrial applications. Our commitment to quality, precision, and durability makes us a trusted pipe fittings manufacturer in India.


Pipe Fittings Sizes & Dimensions

The following table consists of the pipe fittings sizes & dimensions, which are essential components in the piping system.

NPS (inches) Outside Diameter (OD) mm Elbow Center-to-End (90° LR) mm Tee Center-to-End mm Reducer (Large OD x Small OD x H) mm Cap Outside Diameter x Height mm
1/2" 21.3 38 25 21.3 x 15 x 38 21.3 x 25
3/4" 26.7 38 29 26.7 x 20 x 38 26.7 x 25
1" 33.4 38 38 33.4 x 25 x 51 33.4 x 38
1-1/2" 48.3 57 57 48.3 x 32 x 64 48.3 x 38
2" 60.3 76 64 60.3 x 38 x 76 60.3 x 38
3" 88.9 95 76 88.9 x 60 x 89 88.9 x 51
4" 114.3 114 89 114.3 x 88.9 x 102 114.3 x 64
6" 168.3 152 140 168.3 x 114 x 127 168.3 x 76
8" 219.1 203 178 219.1 x 168 x 152 219.1 x 89
10" 273.0 254 216 273 x 219 x 178 273 x 102
12" 323.9 305 254 323.9 x 273 x 203 323.9 x 114

Pipe Fitting Specification

Below is a detailed specification table outlining the key dimensions, materials, pressure ratings, and applicable standards for various pipe fittings.

Fitting Type Size Range (NPS) Material Pressure Rating (Class/Schedule) Dimensions Standard Applicable Standards
Elbow (90° / 45°) 1/2" to 48" Carbon Steel, Stainless Steel, Alloy Steel Sch 10 to Sch 160 / Class 150 to 2500 ASME B16.9, B16.28 ASTM A234, A403, A420, MSS-SP-75
Equal Tee 1/2" to 48" Carbon Steel, Stainless Steel, Alloy Steel Sch 10 to Sch 160 / Class 150 to 2500 ASME B16.9 ASTM A234, A403, A420
Reducer (Concentric / Eccentric) 1/2" to 48" Carbon Steel, Stainless Steel, Alloy Steel Sch 10 to Sch 160 ASME B16.9 ASTM A234, A403
Cap 1/2" to 48" Carbon Steel, Stainless Steel, Alloy Steel Sch 10 to Sch 160 ASME B16.9 ASTM A234, A403
Stub End 1/2" to 24" Stainless Steel, Alloy Steel Sch 10 to Sch 80 MSS-SP-43 ASTM A403, A815
Cross Tee 1/2" to 24" Carbon Steel, Stainless Steel Sch 10 to Sch 80 ASME B16.9 ASTM A234, A403
Pipe Nipple 1/8" to 12" Carbon Steel, Stainless Steel, Brass Sch 40 to Sch 160 Custom / ASME B1.20.1 (threaded) ASTM A106, A312
Socket Weld Fittings 1/8" to 4" Carbon Steel, Stainless Steel Class 3000, 6000 ASME B16.11 ASTM A105, A182
Threaded Fittings 1/8" to 4" Carbon Steel, Stainless Steel, Brass Class 2000, 3000, 6000 ASME B16.11 ASTM A105, A182

Pipe Fitting Price List

The following is the updated price list for various types and sizes of pipe fittings, based on material grade and market standards.

Fitting Type Size (NPS) Material Unit Estimated Price (INR)
90° Elbow 1/2" Carbon Steel Each ₹65
90° Elbow 2" Stainless Steel Each ₹460
Equal Tee 1" Carbon Steel Each ₹190
Reducer (Concentric) 2" x 1" Stainless Steel Each ₹410
Pipe Cap 3" Carbon Steel Each ₹320
Stub End 4" Stainless Steel Each ₹610
Cross Tee 1" Carbon Steel Each ₹345
Socket Weld Elbow 1/2" Stainless Steel Each ₹235
Threaded Tee 1" Brass Each ₹270
Pipe Nipple 2" Carbon Steel Each ₹145

Pipe Fittings: Available Material Options

SS Pipe Fittings

Carbon Steel Pipe Fittings

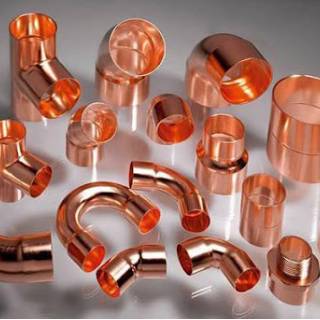

Copper Pipe Fittings

Alloy Steel Pipe Fittings

Monel Pipe Fittings

Hastelloy Pipe Fittings

Pipe Fitting vs Welding: Which is Better?

When comparing pipe fitting vs welding, it’s essential to consider factors like cost, durability, ease of installation, and application suitability. Welded vs threaded pipe fittings serve different purposes—welding ensures a strong, leak-proof joint for high-pressure applications, while the benefits of threaded fittings include easy installation, removal, and maintenance, making them ideal for low-pressure systems.

Key Differences Between Pipe Fittings and Welding

When selecting between threaded and welded pipe fittings, factors such as installation, cost, durability, application suitability, and leak resistance must be considered. Here’s a detailed comparison:

Installation

Threaded pipe fittings are simple to install using basic tools such as wrenches and sealing components. They are best suited for small-diameter pipes and systems that might require frequent adjustments. However, welded fittings create a permanent connection that requires skilled labor and welding equipment. While welding demands more time and effort, the joint produced by welding is more secure and stronger.

Cost

Threaded fittings cost less initially as they do not need costly welding equipment or expertise. They do not require skilled labour and are easy to repair. Welded fittings do have a higher upfront cost based on welding requirements, but they are cost-effective in the long term by minimizing leaks and maximizing lifespan.

Durability & Strength

Threaded fittings are best used for low to moderate pressure operations, but can degrade over time due to corrosion or vibrations. Welded fittings, however, provide greater strength and are thus best suited for high-temperature and high-pressure applications. Properly welded connections withstand mechanical stress and last longer than threaded joints.

Application Suitability

Threaded fittings are generally applied in plumbing, water supply, HVAC and other small systems where disassembly is frequently required. They are generally restricted to pipe sizes less than 4 inches. Welded fittings are preferred in industrial applications like oil & gas, chemical processing, and power plants, where strong, leak-proof connections are crucial for safety and efficiency.

Leak Resistance

Threaded fittings must be sealed using compounds like PTFE tape or pipe dope to avoid leakage. With time, pressure changes and vibrations will lead to leakage in threaded connections. Welded fittings avoid such a risk because they offer an uninterrupted and leakage-free connection that makes them ideal for high-pressure applications where a leak can cause harm. Both choices have their own strengths, and the selection would be based on operation requirements and industry practices.

Standards & Certifications

We ensure our pipe fittings comply with globally recognized piping fittings standards for superior quality and performance. Our products are manufactured following strict pipe fitting standards, making them suitable for diverse industrial applications.

Key Pipe Fitting Standards We Follow:

  • ASTM (American Society for Testing and Materials): Defines material composition and mechanical properties for various pipe fittings.
  • ASME (American Society of Mechanical Engineers): Regulates design, safety, and pressure ratings for high-performance fittings.
  • ANSI (American National Standards Institute): Establishes specifications for threaded, flanged, and welded pipe fittings.
  • DIN (Deutsches Institut für Normung): European standard that guarantees accuracy, safety, and longevity.

Our international quality assurance guarantee ensures we provide industries globally with high-performance, certified pipe fittings.

Why Choose Us for Pipe Fittings?

We are committed to providing high-quality pipe fittings at the best factory price, ensuring competitive pricing for all our customers. With a strong focus on customer satisfaction, we manufacture durable and precisely engineered fittings that meet international quality standards. Our strict quality control measures ensure every product undergoes rigorous testing before reaching our clients. Additionally, we guarantee on-time delivery, helping industries keep their operations running smoothly without delays.

  • Factory Price: Straight sales from our production unit, cutting out middleman charges.
  • Competitive Pricing: Optimal market prices without sacrificing quality.
  • Customer Satisfaction: Tailored service and trustworthy after-sales support.
  • Quality Control: Strict testing to international standards.
  • On-Time Delivery: Quick and effective logistics for timely project delivery.
  • Trust us for high-quality pipe fittings that provide top-notch quality, value, and reliability in each order.

Contact Us for Pipe Fittings

As top pipe fitting distributors and pipe fitting wholesalers, we provide the best-quality fittings at the lowest prices. For bulk orders or custom solutions, our experts give you top-grade products with guaranteed on-time delivery. To know more about our pipe fittings price, feel free to get a quote today and let our experts help you with the finest piping solutions.

FAQs

Pipe fittings are available in a range of standard sizes, typically measured in Nominal Pipe Size (NPS) and Schedule (SCH) classifications. Common sizes range from ½ inch to 48 inches, with variations in wall thickness and pressure ratings.

Selecting the correct pipe fitting size depends on pipe diameter, pressure requirements, and application type.Factors like NPS, wall thickness, and end connections (threaded, welded, or flanged) should be considered for optimal performance.

The best pipe fitting materials depend on the application: Stainless Steel: Corrosion-resistant, ideal for chemical and food industries. Carbon Steel: Strong and durable, used in oil & gas and construction. Alloy Steel: High strength and temperature resistance for industrial use. Brass: Excellent for plumbing and water supply systems.

Yes, certain pipe fittings like threaded and flanged fittings can be reused by properly disassembling and re-sealing them. However, welded fittings create permanent joints and are not reusable.
