Sheets, Plates & Coils Manufacturer

Silver Tubes is a trusted manufacturer and supplier of steel sheets, plates, and coils, known for precision and quality. With advanced production equipment, We follow stringent fabrication processes such as hot rolling and cold rolling forms of sheets of steel and their protective coatings. They meet ASTM, ASME, DIN, EN, and JIS requirements concerning durability and performance for our products. Available in different sizes, thicknesses and dimensions, stainless steel, carbon steel and alloy steel are available. Our galvanized steel coils improve corrosion resistance, while perforated steel sheets are appropriate for industrial and decorative use. We are a top steel sheet manufacturer in India, catering to industries such as oil & gas, construction, and shipbuilding, offering competitive steel sheet prices and adherence to the HSN Code for Sheets in India. With a focus on quality and customer satisfaction, Silver Tubes ensures reliable and timely delivery.

What Is Steel Sheets, Plates & Coils?

Steel plates, coils and sheets are standard metal materials utilised in industrial applications due to their versatility, strength and durability. These products are fabricated in varying material, sizes and thickness in accordance with diverse application need. Sheets are thin metal pieces, whereas steel plates are thicker and usable in heavy-duty use. Coils are rolled steel in continuous form for large scale production. Our products are available in different thickness and dimensional tolerances to suit the precision requirements. We have diverse surface finishes and coatings, like galvanized, polished and coated options, to increase the corrosion resistance and lifespan. Effective quality control mechanisms ensure compliance with standards. Proper handling, storage, and transportation avoid warping and damage. The general problems such as surface defects, corrosion, and mechanical stress can be eliminated with protective coatings and controlled manufacturing processes, providing high-quality performance across applications.

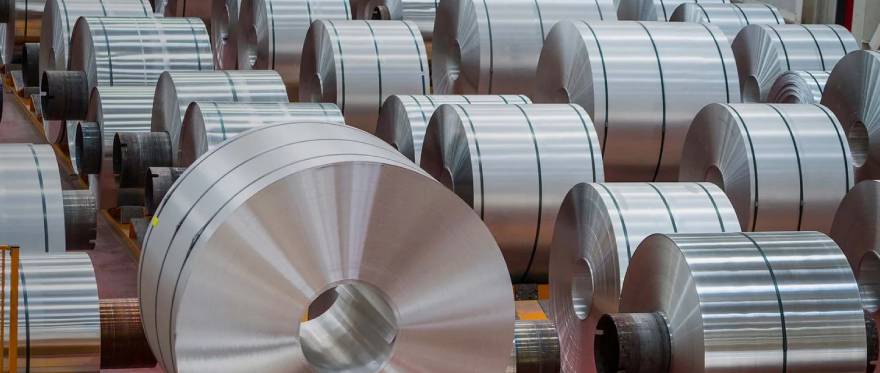

Sheet Plates Coils

How Are Steel Sheets, Plates, and Coils Manufactured?

Our coils, plates, and steel sheets play a vital role in the automotive, engineering, and construction sectors where strength, precision, and durability are important. Knowing about the manufacturing process of steel sheets helps industries choose the right material for their intended use.

Raw Material Preparation

The procedure starts with steelmaking, where raw iron is purified and alloyed to improve mechanical characteristics. This molten steel is cast into slabs using slab casting for further treatment.

Hot Rolling Steel Process

In hot rolling, slabs are heated to high temperatures and rolled through rollers to attain the required thickness. The metal is subsequently cooled in a controlled process to improve its structural strength.

Cold Rolling Steel

For thinner applications, the steel coil rolling method goes through cold rolling, enhancing mechanical strength, and surface finish. This steel hardening process improves the grain structures through recrystallization.

Finishing and Quality Control

Steel is inspected for dimensional tolerances, surface imperfections, and coating applications.

Types of Steel Products

  • Hot-rolled steel: Suitable for structural uses.
  • Cold-rolled steel: Employed where accuracy and smooth surfaces are needed.

What Are the Common Materials in Sheets, Plates, and Coils?

We provide different sheets, plates & coils materials, each having particular properties and grades appropriate for various industrial needs.

Carbon Steel Sheets, Plates & Coils

Durable and cost-effective, carbon steel plates offer excellent strength and weldability, making them ideal for structural applications.

  • ASTM A36: Standard carbon steel sheet, plate & coil with good mechanical properties.
  • ASTM A1011: Hot-rolled carbon steel with enhanced formability and toughness.
  • ASTM A572: High-strength carbon steel plate with improved resistance to corrosion.

Stainless Steel Sheets, Plates & Coils

Known for corrosion resistance, stainless steel plate sheets offer durability in harsh environments.

  • Grade 304: The most commonly used stainless steel with excellent corrosion resistance.
  • Grade 316: Molybdenum-enhanced for superior resistance in marine conditions.
  • Grade 321: Titanium-stabilized stainless steel, resistant to intergranular corrosion.
  • Grade 904L: High-alloy stainless steel with outstanding acid resistance.

Alloy Steel Sheets, Plates & Coils

Engineered for strength and high-temperature performance, alloy steel plates offer enhanced durability.

  • ASTM A182 F5: Chromium-molybdenum alloy steel for heat and corrosion resistance.
  • ASTM A182 F9: High-strength alloy steel with excellent thermal stability.
  • ASTM A182 F11: Tough alloy steel with good weldability and toughness.

Duplex & Super Duplex Stainless Steel Sheets, Plates & Coils

Designed for superior strength and corrosion resistance in extreme conditions.

  • ASTM A182 F51 (Duplex 2205): High-strength duplex stainless steel with excellent pitting resistance.
  • ASTM A182 F53 (Super Duplex 2507): Offers extreme corrosion resistance in harsh environments.
  • ASTM A182 F55: Super duplex stainless steel with enhanced mechanical properties.

Nickel Alloy Sheets, Plates & Coils

Nickel-based alloys provide exceptional corrosion and heat resistance for specialized applications.

  • Inconel 800, 825, 600, 625, 601: High-performance nickel alloys with superior oxidation resistance.
  • Nickel 200 & Nickel 201: Pure nickel grades known for excellent thermal and electrical conductivity.

Copper-Nickel (Cu-Ni) Sheets, Plates & Coils

Highly resistant to seawater corrosion, copper-nickel sheets, plates & coils offer excellent strength and durability.

  • ASTM B151 UNS C70600 (90/10 Cu-Ni): Contains 90% copper and 10% nickel, providing superior resistance to biofouling.
  • ASTM B151 UNS C71500 (70/30 Cu-Ni): Provides greater strength and corrosion resistance compared to 90/10 Cu-Ni, well suited to marine uses.

Benefits Of Steel Sheets Plates And Coils

The sheets, plates, and coils of steel are used widely due to their cost, strength, durability, and versatility making them essential for many industrial applications. These major advantages guarantee their ongoing demand across industries.

  • Durability: Steel has great resistance to deformation, wear, and impact, which makes it suitable for heavy-duty usage.
  • Cost-Effective: With long-lasting performance and minimal maintenance, steel remains a cost-efficient choice.
  • Corrosion Resistance: Coated and alloyed steels offer superior protection against rust and environmental damage, ideal for outdoor and marine applications.
  • Customizability: Steel can be cut, welded, and shaped into various sizes and designs to meet specific needs.
  • Strength-to-Weight Ratio: Despite its lightweight nature, steel provides exceptional structural strength, supporting efficient designs.
  • Recyclability: Being a 100% recyclable material, steel makes manufacturing more sustainable and environmentally friendly.

Specification of steel Sheets, Plates, and Coils

Below are specifications of steel plates, sheets, and coils consisting of material grade, thickness, width, length, surface finishes, and standard applicable to ensure quality and performance.

Parameter Sheets Plates Coils
Thickness Range 0.2 mm – 6 mm 6 mm – 150 mm or more 0.2 mm – 20 mm (HR/CR coils)
Width Range Up to 2000 mm (custom cuts available) Up to 3000 mm 600 mm – 2000 mm
Length (for CTL) 1000 mm – 6000 mm 2000 mm – 12000 mm Coil form (cut to length on demand)
Edge Options Mill edge, Slit edge Mill edge Slit edge, mill edge
Surface Finish 2B, BA, No. 1, No. 4, Mirror, Matte HR, Pickled & Oiled, Shot Blasted HR, CR, Galvanized, Color-Coated
Tolerance Standards As per ASTM, EN, IS, or customer specs As per ASTM, EN, IS, or customer specs As per ASTM, EN, IS, or customer specs

What is the chemical composition of steel Sheets, Plates, and Coils?

The following are the chemical composition details of steel sheets, plates, and coils, varying based on grade and material specifications.

Element Composition (%)
Carbon (C) ≤ 0.23
Manganese (Mn) 0.30 – 0.90
Sulfur (S) ≤ 0.050
Phosphorus (P) ≤ 0.050
Silicon (Si) ≤ 0.40

Mechanical Properties of Steel Sheets, Plates, and Coils

The following are the mechanical properties of steel sheets, plates, and coils, categorized based on industry standards and material grades.

Mechanical Property Tensile Strength Ranking 3.6 4.6 4.8 5.6 5.8 6.8 8.8 (1) 9.8 (2) 10.9 12.9
Nominal Tensile Strength Rm and nom N/mm²   300 400 500 500 600 800 800 900 1000 1200
Minimum Tensile Strength Rm and min(4) N/mm²   330 420 520 600 800 830 900 900 1040 1220
Vickers Hardness HV F=98N Min. 95 120 130 155 160 250 255 290 320 385
  Max. 220(5) 250 250 320 335 360 380 380 380 435
Brinell Hardness HB F=30D²/0.102 Min. 90 114 124 147 152 181 238 242 276 304
  Max. 209(5) 238 238 304 318 342 361 366 366 414
Rockwell Hardness Min. (HRB) 52 67 71 77 79 82 89 - - -
  Min. (HRC) - - - - - - 22 23 28 39
  Max. (HRB) 95.0(5) - - - - 99.5 - - - -
  Max. (HRC) - - - - - - 32 34 37 44
Surface Hardness HV0.3 Max. - - - - - - - (8) - -
Lower Yield Point Re (7) N/mm² Nominal Diameter 180 240 320 300 400 480 - - - -
  Min. 190 240 340 300 420 480 - - - -
0.2% Durability RP0.2 (8) N/mm² Nominal Diameter - - - - - - 640 640 720 900
  Min. - - - - - - 660 720 940 1100
Guarantee Load Stress Sp Sp/ReL or Sp/RP0.2 0.94 0.94 0.91 0.93 0.9 0.92 0.91 0.91 0.88 0.88
Rupture Elongation %   25 22 - - 12 12 10 9 8 8

Available Sizes, Thickness, and Dimensions of Sheets, Plates & Coils

Sheets, plates, and coils come in different sizes, thicknesses, and dimensions to cater to various industrial applications. These sizes are according to international requirements like ASTM, ASME, EN, and JIS to maintain precision and quality.

Thickness:

  • Sheets: Typically range from 0.3mm to 6mm, ideal for lightweight applications.
  • Plates: Available in thicknesses from 6mm to 150mm, offering structural strength.
  • Coils: Thickness varies based on requirements, generally ranging from 0.3mm to 20mm.

Width:

  • Standard widths include 1000mm, 1250mm, 1500mm, and 2000mm.
  • Custom widths up to 3000mm or more are available for specific industries.

Length:

  • Sheets & Plates: Typically available in 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, and 12000mm.
  • Coils: Supplied in continuous lengths or cut-to-size as per client specifications.

Materials:

  • Stainless Steel: Grades include SS 202, SS 304, SS 316, SS 321, SS 310, SS 410, SS 420, and SS 416.
  • Carbon Steel: Available in multiple carbon steel plate grades, including low-carbon and high-strength variants.
  • Alloy Steel: Includes various alloy steel sheet and plate options.
  • Other Materials: Nickel alloys, Copper-Nickel, Hastelloy, Monel, Inconel, Alloy 20, and Duplex Steel.

Finishes:

  • Hot-Rolled (HR): Available in hot-rolled plates and coils with a rougher finish.
  • Cold-Rolled (CR): Offers a smoother surface with better mechanical properties.
  • Additional Finishes: 2B, 2D, BA, No.8 (Mirror), and Satin finishes for different industry requirements.
  • Custom sizes: Custom sizes and thicknesses are available upon request to meet specific project demands.

Most Popular Grades for steel Sheets, Plates, and Coils

The following are some of the most popular grades of steel sheets, plates, and coils. These grades are used depending on their mechanical properties, corrosion resistance, and applicability in different industrial uses.

Carbon Steel Sheets, Plates & Coils

Carbon steel coils, plates, and sheets are particularly noted for being very strong, durable, and cost-effective. They find extensive use in construction, structural uses and pressure vessels.

  • ASTM A36: A widely used mild steel grade having good strength and weldability.
  • ASTM A283: Covers low and intermediate tensile strength carbon steel plates.
  • ASTM A516 (Grades 55, 60, 65, 70): Ideal for pressure vessels due to its excellent notch toughness.
  • ASTM A572 (Grades 42, 50, 60): High-strength, low-alloy structural steel with enhanced durability.

Stainless Steel Sheets, Plates & Coils

Stainless steel sheets, plates, and coils offer excellent corrosion resistance, making them suitable for harsh environments, food processing, and marine applications.

  • 304 / 304L: Commonly used austenitic stainless steel with excellent corrosion resistance.
  • 316 / 316L: Contains molybdenum for superior corrosion resistance in marine and chemical environments.
  • 321 / 347: Stabilized grades with resistance to intergranular corrosion at high temperatures.
  • 409 / 410 / 420: Ferritic and martensitic stainless steel grades used for heat and wear resistance.
  • 430: A ferritic grade known for good corrosion and oxidation resistance.
  • 904L: A high-alloy stainless steel with superior resistance to acidic environments.

Alloy Steel Sheets, Plates & Coils

Alloy steel sheets, plates, and coils are designed to offer improved strength, toughness, and heat resistance, making them ideal for high-temperature and pressure applications.

  • ASTM A387 (Grades 5, 9, 11, 22, 91): Chromium-molybdenum alloy steel used for high-temperature applications.
  • ASTM A204 (Grade A, B, C): Molybdenum steel with enhanced strength and corrosion resistance.

Duplex & Super Duplex Stainless Steel Sheets, Plates & Coils

Duplex and super duplex stainless steel sheets, plates, and coils provide a combination of high strength and excellent corrosion resistance, particularly in chloride-rich environments.

  • ASTM A240 UNS S31803 (Duplex 2205): Offers high strength and excellent corrosion resistance.
  • ASTM A240 UNS S32750 (Super Duplex 2507): Superior resistance to chloride stress corrosion cracking.
  • ASTM A240 UNS S32760: A super duplex grade known for exceptional mechanical strength and corrosion resistance.

Nickel Alloy Sheets, Plates & Coils

Nickel alloy plates, sheets, and coils have good high-temperature strength, corrosion resistance, and high performance in harsh environments.

  • Inconel 600, 625, 800, 825: High-temperature-strength nickel-chromium alloys of excellent oxidation resistance.
  • Monel 400, K500: Nickel-copper alloys offering good resistance to seawater and chemical environments.
  • Hastelloy C22, C276: Nickel-molybdenum alloys known for superior corrosion resistance in harsh conditions.
  • Nickel 200, Nickel 201: Pure nickel grades with excellent thermal and electrical conductivity.

Copper-Nickel (Cu-Ni) Sheets, Plates & Coils

Copper-nickel sheets, coils, and plates offer improved seawater corrosion resistance, thermal conductivity and biofouling and are well suited for industrial and marine uses.

  • ASTM B122 UNS C70600 (90/10 Cu-Ni): It contains 90% copper and 10% nickel composition with superior marine corrosion resistance.
  • ASTM B122 UNS C71500 (70/30 Cu-Ni): A stronger alloy with enhanced resistance to seawater and biofouling.

What is the difference between sheet plate and coil?

The difference between these plates, sheets and coils can be explained in terms of their thickness, such as sheet is thinner, a plate is thicker, and a coil is a rolled up continuous sheet for easy transportation and processing.

Types of sheet, a plate and a coil

Type Description
Cold Rolled Sheet (CR) Smooth finish, tight tolerance, used in appliances, furniture, automotive.
Hot Rolled Sheet (HR) Scaled surface, less precise, used in structural and fabrication work.
Galvanized Sheet (GI) Zinc-coated for corrosion resistance, used in ducts, roofing, panels.
Electro-Galvanized Sheet (EGI) Electroplated zinc, better surface finish, used in electronics, auto parts.
Stainless Steel Sheet (SS) Corrosion-resistant, used in food, pharma, marine, and decorative sectors.
Pre-painted Galvanized Sheet Painted GI sheet, used in cladding, roofing, signage.
Embossed/Textured Sheet Textured patterns (e.g., diamond), anti-slip floors, decorative uses.
Perforated Sheet Punched holes for ventilation, filtration, or aesthetic applications.

What Are the Standards for Sheets, Plates, and Coils?

These are the standards to which we apply to sheets, plates and coils, insuring quality, material characteristics, and conformity with industry standards.

Key Standards:

ASTM: A240 (ASTM A240 Plate for stainless steel sheets/plates), A36 (carbon steel plates), A516 (pressure vessel plates), A387 (alloy steel plates).

  • ASME: SA240 (stainless steel plates), SA516 (carbon steel pressure vessel plates).
  • EN: 10025 (structural steel plates), 10204 (material certification standards).
  • JIS: G3101 (general structural steel), G4304 (stainless steel plates and sheets).
  • ISO: 9001 (quality management system), 15510 (stainless steel chemical composition standards).

As an ASTM A240 Sheet Supplier in Mumbai, we offer high-quality stainless steel sheets and plates, which are certified products that meet industry standards.

How does UNS relate to sheets, plates, and coils?

The Unified Numbering System (UNS) is a standardized system developed to classify metals and alloys, ensuring consistency across industries.

What is UNS?

The UNS is a classification system developed by ASM International and ASTM International to classify metals according to their composition. It gives a specific designation to every metal alloy so that naming and properties are consistent.

How it related to Sheets, Plates, and Coils

UNS codes specify the exact grade of alloy or steel applied in sheets, plates, and coils. Such codes ensure compatibility with worldwide quality, and manufacturing standards by standardizing material properties.

Why It’s Important

With the use of UNS codes, both manufacturers and purchasers can use the same specifications for a material, avoiding confusion and guaranteeing quality control. It ensures consistency in chemical content and mechanical properties.

Where to Find UNS Codes

UNS codes are contained within material specifications, industry datasheets, and global standards such as ASTM, ASME, and JIS to provide global market compliance.

Why Choose Silver Tubes?

Silver Tubes is a well-known manufacturer, providing quality steel products with precision and reliability. We offer high-grade Stainless Steel Plates & Sheets at competitive prices, ensuring cost-effective solutions without compromising quality. Our products are ISO, ASTM, ASME, and PED-certified, backed by strict quality control measures to guarantee durability and strength. With a vast inventory, we provide instant order processing and global shipping, serving industries globally. Our specialized customer support is available to assist, and our products comes with warranty-backed guaranteed. We offer vital certifications like Mill Test Reports (MTR), EN 10204 3.1/3.2, ASME & ASTM compliance reports, ISO 9001 and PED certification to guarantee compliance with industry standards. Every product is securely packaged with clear markings for safe transportation and easy identification, making Silver Tubes a preferred choice for superior steel solutions.

Common Applications of SS Coils, Plates, & Sheets

Stainless steel coils, plates, and sheets are widely used across various industries due to their durability, corrosion resistance, and strength.

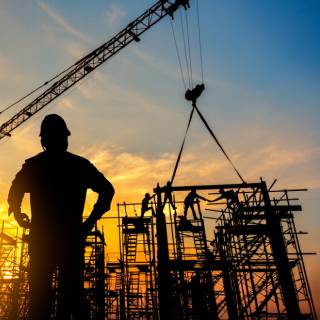

Building & Construction

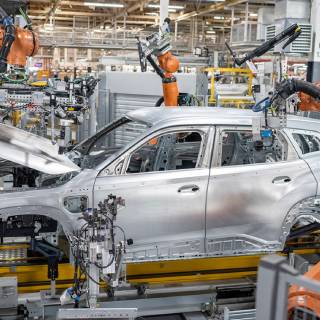

Automotive manufacturing

Marines Application

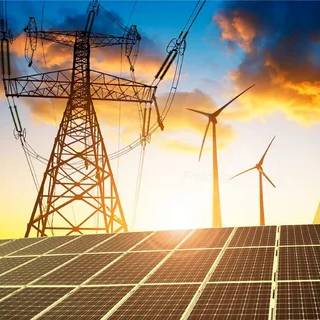

Energy Production

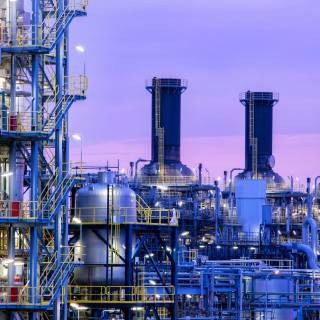

Chemical Processing

Healthcare and Medical

Home Appliances

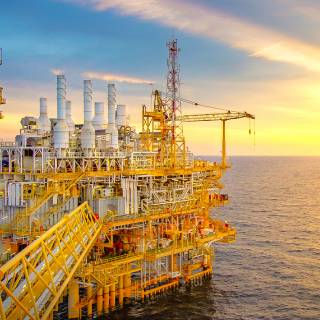

Oil & Gas

FAQs – Steel Sheets, Plates & Coils

Coil thickness is generally thinner than plate thickness and can vary depending on the rolling process. Sheets typically range from 0.3mm to 6mm, plates are 6mm to 150mm, while coils can be customized based on requirements.

The weight of steel sheets, plates, and coils can be calculated using the formula: Weight (kg) = Length (m) × Width (m) × Thickness (mm) × Density (kg/m³) For stainless steel, the density is approximately 7850 kg/m³.

The cost of 1 kg of steel sheets, plates, and coils depends on factors such as material type, grade, thickness, and market fluctuations. For the latest pricing, reach out to Silver Tubes, a reliable stainless steel sheet supplier in India.

Aluminum coils are widely used in roofing, HVAC systems, automotive manufacturing, electrical appliances, and food packaging due to their lightweight, corrosion resistance, and excellent thermal conductivity.

Plate thickness is measured using calipers, ultrasonic thickness gauges, or micrometers to ensure accuracy. It is specified in millimeters (mm) or inches, with standard industrial plates starting from 6mm and above.
